Dx. Water cooled system with cooling tower

The air conditioning system consists of units operating with refrigerants and a water-cooled condenser, either integrated or separate, to cool large buildings and spaces without requiring the condenser to be located outside. The system relies on a cooling tower instead of ambient air for the condensation process of the refrigerant.

     Features:-

1.            Cost-Effective: The system is characterized by its low cost compared to other air conditioning systems.
2.   Aesthetic Preservation: The system does not require an external condenser, thereby maintaining the building's exterior design.
3.   Flexible Implementation: The phases of the air conditioning system can be executed or operated in segments as needed, resulting in significant savings for the user or owner.
4.   Ideal for Commercial Buildings: It is one of the best systems for conditioning large commercial and administrative buildings, allowing for effective control over usage costs.

This system is widely used in:

-          Large commercial and administrative buildings.

-          High-rise residential buildings (skyscrapers) where external units cannot be installed.

-          Marine vessels and yachts, utilizing seawater for refrigerant condensation instead of a cooling tower.

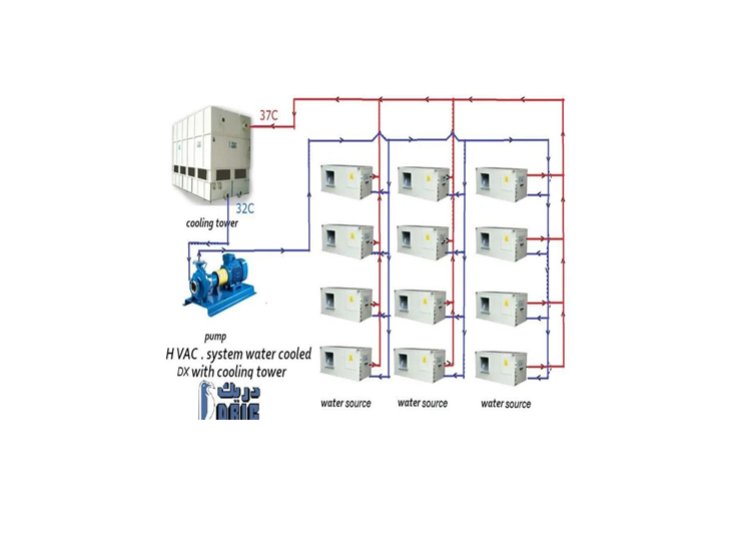

The system consists of:

-          DX air conditioning unit with a water-cooled condenser, either integrated or separate.

-          Cooling tower for cooling the condensate water.

-          Comprehensive piping network, including pumps between the tower and the air conditioning units.

-          Central control panel to operate the cooling tower according to the usage of the air conditioning units.
